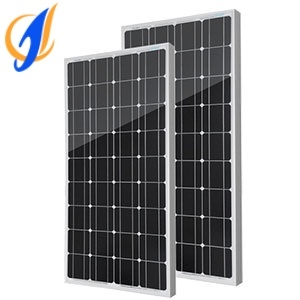

320W Monocrystalline Solar Panel

Status: Stocking

Contact us

1. High efficient Poly solar panel, transformation efficiency up to 18%

2. Adopt most advanced PERC cells technology, high conversion rate

3. Withstand the storm, strong wind and hail impact, etc

4. Black Resistant, High salt and ammonia resistance

5. More than 25 years lifespan

    Add to favorites Favorite

    Electrical Parameters
    Rated Maximum Power at STC(W) 320W
    Working Power Voltage(Vmp/P) 32.7V
    Working Power Current(Imp/A) 9.79A
    Open Circuit Voltage(Voc/v) 39.24V
    Short Circuit current(Isc/a) 10.28A
    Max System Open Circuit Voltage 1500V
    Junction Box(Protection Degree) ≥IP67
    Mechanical Parameters Working Conditions
    Dimensions(LxWxH)

    1640*992*35

    Application Class Class A
    Weight(kg) 18 Operating Temp -45°C+80°C
    No.of cells and connections 60(10x6) Maximum Serise Fuse(A) 15A
